Features:
-

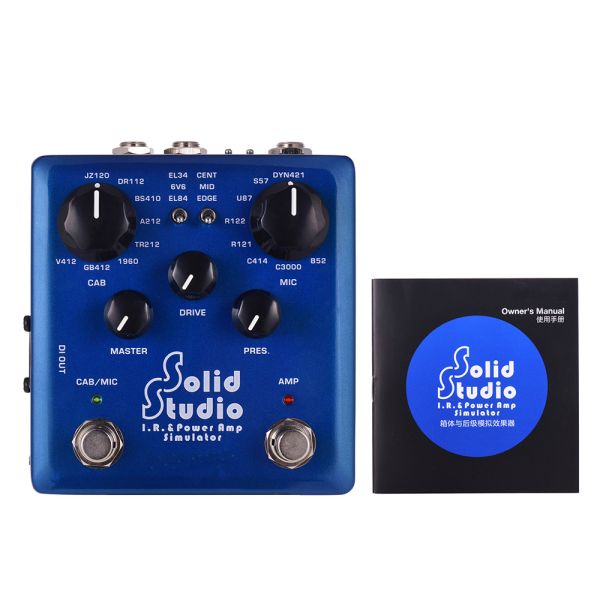

Solid Studio IR Power Amp Simulator Guitar Multi Effects Pedal Dual Footswitch Built-in 8 Cabinet 8 Microphone True Bypass
Solid Studio IR & power amp simulator, a pedal version of the most classic amp/ cabinet scenarios including microphone placement and the presence of internal power amp. It has the perfect line-output everyone should have at the final stage of their pedal chain to send the sound directly to a PA or a recorder. Plus, power amp simulation with master, drive and presence controls, and 3 power tube selections, offers more variation for sound enhancement.
Features:
8 cabinet models, 8 microphone models with 3 mic positions(CENT/MID/EDGE) for fine-tuning, and 3 power amp tubes(EL34--heavier sound, crunchy; 6V6-- a warm and natural tube sound; EL84-- bright sound, tasty trebles).
With MASTER knob(adjusts the output level when the power-amp simulation is activated), DRIVE knob(adjusts the amount of gain applied to power amp simulation), PRES knob(adjusts the treble frequencies).
Has an input level toggle switch(+4dB/-10dB), you can optimize the input signal with your signal level to avoid signal clipping; also has THRU output LINE/ SPK toggle switch for you to have the best sound output.
One 6.35mm mono input for connecting guitar; one 6.35mm THRU mono output to send the dry signal to amplifier or cabinet; one 6.35mm TS/TRS mono output for cabinet and power amp simulation dedicated output or connecting headphones directly; a XLR DI out for balanced signal output.
With Micro USB input, you can use NUX Solid Studio software to load any of your favorite IR files and save presets as your own files.
Specifications:
Sampling Frequency: 88.2kHz
A/D Resolution: 32 bit
Resolution: 32 bit
Frequency Response: 20Hz-20KHz
THD+N: -100dBu(A-weighting)
Dynamic Range: 100dB
Input: max.+18dB
Output: max.-20dB
Power Supply: 9V DC(negative tip)
Current Draw: <240mA
Item Size: 10.5 * 11 * 4cm / 4.1 * 4.3 * 1.6in
Item Weight: 432g / 15.2oz
Package Size: 13.5 * 14 * 7cm / 5.3 * 5.5 * 2.8in
Package Weight: 610g / 1.3lbs
Note:
Power Adapter is not included.
Please use the power adapter whose polarity is positive pole outside and negative pole inside. Otherwise, the product may not work properly.
Package List:
1 * Effect Pedal
-
| Specs |
Sampling Frequency: 88.2kHz
A/D Resolution: 32 bit
Resolution: 32 bit
Frequency Response: 20Hz-20KHz
THD+N: -100dBu(A-weighting)
Dynamic Range: 100dB
Input: max.+18dB
Output: max.-20dB
Power Supply: 9V DC(negative tip)
Current Draw: <240mA
Item Size: 10.5 * 11 * 4cm / 4.1 * 4.3 * 1.6in
Item Weight: 432g / 15.2oz
Package Size: 13.5 * 14 * 7cm / 5.3 * 5.5 * 2.8in
Package Weight: 610g / 1.3lbs |
| Style |
IR Power Amp Simulator Guitar Multi Effects Pedal Dual Footswitch Built-in 8 Cabinet 8 Microphone True Bypass |
| Customize |
Yes |
| Feature |
True bypass |
| Dimensions |
120mm(D) x 80mm(W) x 40mm(H) |
| Weight |
500g |
| Brand |
Grand, OEM is fine |
Introduction:
Our company has 230 workers, include 15 professional engineers. They supervise the whole producing line from choose material till packing. We can strictly arrange the products as your requests.
Grand Technology is a manufacturer of musical instruments and accessories, which brand is "Grand".
Our factory is located in one of the most important ports of South China, Shekou, Guangdong, Near HK, connects with main highways and airports.
As the professional manufacturer, we supply kinds of musical products such tube guitar amplifiers, hand wired tube guitar amps, point to point amps, replica pedals and amps, electric guitars, acoustic guitars, ukulele, banjo, piano, etc many kinds of musical Instrument gears.
We only provide good quality products with low prices, which are selling well in the international markets, such as USA, Europe, Japan, Korea, South Africa, Kenya, South America, etc. We have plenty experiences in exporting, and be good at holding the mainstream of musical instrument markets.
At present, we establish technology, purchasing, and sales groups to serve our customers. We are thinking in your way, doing as your requests and eager to be your reliable supplier.
Any inquiry will be welcome and highly appreciated.
FAQ:
1)Q:How to make payment?
A:Stock goods will be shipped out after 100% payment,manufacturing items accept 30% deposit before production ,70% remaining balance before shipment.
We accept western union and T/T. Of course if you have friend or shipping agent in china can pay RMB directly ,that is welcomed.
2)Q:Can we make our own design or logo?
A:Yes.Please contact our sales and show them your design.It's commonly seen that customers choose our model to make their own logo.
3)Q:Can you accepting making sample before bulk order? Can we get sample free?
A:Yes.No matter one sample or 20feet container is welcomed.
The sample fee and shipping fee will be payed by customers.For some items we will return sample fee back to you when you place bulk order.
4)Q:How long will lead time be?
A:Usually stock goods will be leaded into one week .Manufacturing items depends on exact quantity and complexity of them. But normally 30-45 days.
5)Q:I like your website ,how can I add it to my favorite so I can find it easily next time when I want it.
A:Please click the touch on the top of our website: Add company to my favorite.
6)Q:Are you factory or trading company?
We are factory which local in guangdong provide China.Our factory have around 80 workers and 1861 square meter prdocution space.Wecome to visit us.
7)Q:What is your Mini order quality?
For wholesale:NO MOQ.
For OEM,it is depend on what you need to change. we have a lot of semi-finished products.
Our Services:
we have our own QC department, so we will ensure the quality. if any problems on our products, we will offer free repairmet, you can just pay for shipping cost.
Packaging & Shipping:
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
Why choose us?
1)We are Professional guitar pedal manufacturer
2)OEM &ODM design here
3)Can print your own logo
4)Deal with Manufactory Directly
|
|
Solid Studio IR Power Amp Simulator Guitar Multi Effect Pedal Dual Footswitch Builtin 8 Cabinet 8 Microphone True Bypass Images
|
